DeepSeek Engram Performance Exploration on A5 NPU : Fused GM-SIMT Kernel¶

1. Overview¶

The DeepSeek Engram layer is an \(O(1)\) memory lookup for N-gram context: hash a token's hidden state into \(H = 8\) head indices, gather \(H\) rows from a shared embedding table, column-wise mean, then sigmoid-gated residual add — Lookup → Aggregate → Gating. This is a GM-bandwidth-bound micro-kernel: each position moves \((H + 2) \times D \times 4\) bytes but executes very few FLOPs, placing it far below the roofline crossover. The SIMD baseline serializes \(H\) DMA transfers through MTE2 with per-head pipeline barriers and routes every value through UB — making MTE2 busy cycles the dominant cost. This work fuses all three stages into a single SIMT kernel using a Register-Forwarding Direct-GM dataflow: data flows from GM through the D-cache directly into per-thread registers, bypassing MTE2 and UB entirely (UB is used only for cross-warp dot-product scratch).

Quick Reference¶

Performance Tuning¶

Knob	Effect	Recommendation
Batch size \(B\)	Amortizes SIMT launch overhead; enables D-cache reuse	\(B \geq 4\) for speedup > 1.0×; \(B \geq 16\) for significant gains
Embedding dim \(D\)	Controls working set vs D-cache capacity	\(D \leq 256\) gives best SIMT speedup (working set fits in D-cache)
LAUNCH_BOUND	Trades GPR count for warp parallelism	LB(1024) for D≤256; LB(512) for D≥512 B≥16 (64 GPRs, independent head loads)
Access pattern	Affects D-cache HIT rate	SEQ gives best locality; RAND worst. Difference is modest

When to Use SIMT Fusion vs Baseline SIMD¶

Scenario	Recommendation	Reason
\(B = 1\)	SIMD baseline	SIMT launch overhead exceeds DMA cost
\(B \geq 4\), \(D \leq 256\)	SIMT fused	1.4–4.5× speedup from MTE2 elimination + D-cache reuse
\(B \geq 4\), \(D = 512\)	SIMT fused (marginal)	1.0–1.1× speedup; GM bandwidth bottleneck for both (but SIMT frees UB and indicates hybrid DMA-SIMT or SIMD-SIMT decoupled configurations can achieve more performance benefits)

SIMT Mapping Selection (compile-time selection via FusedEngramImpl<D, B>)¶

Path	Config Range	LAUNCH_BOUND	GPRs	kColWarps	Key Property
B=1	All D, B=1	1024	32	D/32	Full-column, each warp owns 32 cols
D≤256, B>1	D∈{128,256}, B>1	1024	32	D/(32×kCC)	ColChunks batched; kColWarps=1 at B=64 (zero barriers)
D≥512, B≥16	D∈{512,1024}, B≥16	512	64	D/256	Independent per-head loads, 8 concurrent table reads

ColChunks Configuration (compile-time selection)¶

\(D\)	\(B\)	kColWarpsBase	kColChunks	kColWarps	kTotalWarps	Barriers
128	1	4	—	4	4	1
128	4	4	1	4	16	1
128	16	4	2	2	32	1
128	64	4	4	1	64	0
256	4	8	1	8	32	1
256	16	8	4	2	32	1
256	64	8	8	1	64	0
512	16	16	8	2	32	1
512	64	16	8	2	128	1 per stride-loop iteration

SIMT Architectural Exploration Demo¶

Beyond kernel fusion, this demo serves as a SIMT architectural exploration of the A5 memory hierarchy under a real inference workload. Through CA-Model cycle-accurate simulation across 48 configurations (\(3D \times 4B \times 4\) patterns), we systematically characterize the following microarchitectural phenomena:

SIMT Perf Exploration	KeyInsight
Access pattern locality	How access patterns (RAND vs SEQ vs SAME vs STRIDE) determine D-cache HIT/MISS/FAKE_HIT ratios and their impact on kernel throughput
Cacheline thrashing	D=512 working set (\(12{,}288\) CL) exceeds D-cache capacity (\(1{,}024\) lines) → near-zero HITs → speedup collapses from 4.5× to 1.1× --> exhibits D-cache Thrashing
Cacheline reuse	Cross-position temporal reuse: positions sharing table rows (SAME) or accessing nearby rows (SEQ) benefit from warm cachelines left by earlier warps --> exhibits D-cache reuse
D-cache pressure	Per-position cacheline demand scales as \((H + 2) \times D/32\) CL — at D=512, a single position touches 160 CL (15.6% of D-cache)
D-cache contention	Multiple warps issuing concurrent LDGs to different table rows compete for the same 1,024-line D-cache, causing eviction storms under RAND patterns
D-cache serialization	FAKE_HIT events: when multiple warps access the same cacheline while a MISS is in-flight, they serialize behind the pending fill (~100–550 cy)
Memory latency	Cold MISS costs ~550 cycles (GM round-trip). This dominates as 72–88% scoreboard stalls across all configs — the kernel is memory-latency-bound
Warp effective BW vs warps/scheduler	D=128 B=1: 1 warp/scheduler → BW = 4.89 B/cy (stall-dominated). D=128 B=64: 8 warps/scheduler → BW = 24.82 B/cy (bus-saturated). More warps hide latency until the GM bus ceiling is hit
GM effective IPC	Aggregate IPC across 4 schedulers: measures how effectively warps overlap memory stalls. D=128 IPC rises +395% with batch (latency hiding wins). D=512 IPC falls −28% (bus already saturated — more warps can't help)
SIMD vs SIMT access pattern sensitivity	SIMD: pattern-independent (DMA cost is fixed per row). SIMT: pattern-dependent (D-cache HIT rate varies 0.09%–55.5% across patterns at D=512, B=64)

Objectives¶

• Eliminate the MTE2 DMA bottleneck by replacing UB-staged tile operations with D-cache-backed register-resident execution
• Scale kernel performance with batch size \(B\) via multi-position warp mapping and D-cache temporal reuse across positions
• Characterize D-cache locality, thrashing, reuse, contention, and serialization across 4 access patterns and analyze CA-Model cycle-accurate simulator traces
• Quantify the warp effective bandwidth vs warps-per-scheduler interaction and identify the GM bus ceiling (~25 B/cy)
• Measure GM effective IPC to expose the memory-latency wall: the Utilization Paradox where 98% SIMT utilization yields only 1.1× speedup at D=512
• Demonstrate that SIMD baseline is access-pattern-blind while SIMT performance is pattern-sensitive — making access patterns a optimization variable

---

2. Mathematical Formulation¶

Inputs¶

Symbol	Shape	Description
\(T\)	\((R, D)\)	Embedding table — \(R\) rows, \(D\)-dimensional float vectors
\(\text{idx}\)	\((B \times H,)\)	Index vector — \(H = 8\) head indices per position, \(B\) positions
\(h\)	\((B, D)\)	Hidden states — current token embeddings
\(g\)	\((B, D)\)	Gate weights — learned gating vectors
\(b\)	scalar	Gate bias — constant \(0.125\)

Stage 1 — Multi-Head Gather (per position \(p\))¶

Stage 2 — Column-wise Aggregation¶

Stage 3 — Context Gating (Sigmoid Linear Unit)¶

Combined Single-Pass Expression¶

Engram Dataflow¶

---

3. Test Platform¶

David A5 (Ascend910) SIMT Resources¶

Resource	Specification
Unified Buffer (UB) per Core	256 KB on-chip SRAM
D-Cache per Core	128 KB (1024 lines × 128 B)
Warp Schedulers per Core	4 (round-robin)
Max Warps at LAUNCH_BOUND(1024)	32
Max Warps at LAUNCH_BOUND(512)	16
GPRs per Thread at LB(1024)	32
GPRs per Thread at LB(512)	64
Warp Width	32 threads (lanes)
MSHR Entries	~64 per D-cache
Cold MISS Latency	~550 cycles (GM round-trip via HBM)
D-cache HIT Latency	~19 cycles
Cacheline Size	128 bytes (= 32 floats)

Thread-to-Column Mapping¶

Each SIMT thread owns exactly one column \(j\) of the embedding dimension for the entire kernel lifetime:

tx  = lane_id    ∈ [0, 31]    — column within warp
ty  = warp_id    ∈ [0, kWarps - 1]
col = ty × 32 + tx            — global column index ∈ [0, D)

\(D\)	kWarps (B=1)	Total Threads (B=1)	Warps / Scheduler
128	4	128	1
256	8	256	2
512	16	512	4

---

4. Performance Analysis Configuration¶

Test Matrix¶

Parameter	Values
Embedding dimension (\(D\))	128, 256, 512
Batch size (\(B\))	1, 4, 16, 64
Table size (\(R\))	65,536 rows (64K)
Access patterns	RAND, SEQ, SAME, STRIDE
Simulator	A5 CA-Model

Access Pattern Definitions¶

Pattern	Index Assignment	D-Cache Behavior
RAND	idx[h] = rand() % R	No locality — cold MISS dominated
SEQ	idx[h] = h	Stride-1 — spatial locality, best HIT rate
SAME	idx[h] = const ∀ h	All heads same row — maximum FAKE_HIT
STRIDE	idx[h] = h × (R/H)	Spread access — distributed cache pressure

Tensor Sizing¶

Config	Table \(R \times D\)	Per-Position GM Load
D=128	65536 × 128	\((8 + 2) \times 128 \times 4 = 5{,}120\) B
D=256	65536 × 256	\((8 + 2) \times 256 \times 4 = 10{,}240\) B
D=512	65536 × 512	\((8 + 2) \times 512 \times 4 = 20{,}480\) B

Trace Log Files¶

#	File	Content
1	core0_summary_log	Kernel wall-clock busy_ticks (baseline and fused)
2	ts{0-3}_log.dump	Per-scheduler instruction issues + CheckBitMask stall vectors
3	dc.dump	D-cache tag results: MISS / FAKE_HIT / HIT per access
4	ub.dump	Unified Buffer grant statistics per operation class

---

5. Baseline SIMD Implementation¶

The baseline uses PTO SIMD tile operators with the MTE2 DMA engine for data movement, processing positions one at a time:

for pos = 0 to B-1:
    TLOAD(hiddenF, hidGM)         ‖ MTE2 DMA: GM → UB
    TLOAD(gateWF,  gwGM)          ‖ MTE2 DMA: GM → UB
    TLOAD(idxTile, idxGM)         ‖ MTE2 DMA: GM → UB
    pipe_barrier(PIPE_MTE2)

    for h = 0 to 7:
        TLOAD(headTile[h], embGM[idx[h]]) ‖ 8 serial DMA transfers
    pipe_barrier(PIPE_MTE2)

    TCOLSUM(aggF, lookupF2D)      ‖ Column reduction in UB
    TMULS(aggF, aggF, 1/8)        ‖ Scale to mean

    TMUL(tmpF, hiddenF, gateWF)   ‖ h × g element-wise
    TROWSUM(gsF, tmpF, tmpF)      ‖ Dot product → scalar
    TADDS(gsF, gsF, 0.125)        ‖ + bias
    TMULS(gsF, gsF, -1)           ‖ Negate
    TEXP(gsF, gsF)                ‖ exp(-x)
    TADDS(gsF, gsF, 1)            ‖ 1 + exp(-x)
    TDIVS(gsF, 1, gsF)            ‖ 1 / (1 + exp(-x)) = σ
    TROWEXPANDMUL(tmpF, aggF, gs) ‖ Gate × agg
    TADD(tmpF, hiddenF, tmpF)     ‖ + residual
    TSTORE(outGM, tmpF)           ‖ MTE3 DMA: UB → GM

---

6. Fused SIMT Implementation¶

6.1 Kernel Architecture¶

The fused kernel has three SIMT variants, selected at compile time by FusedEngramImpl<D, B>:

FusedEngramImpl<D, B>
    │
    ├─ if D ≥ 512 && B ≥ 16  ── simt_engram_v2_lb512<D, B>     LB(512)  64 GPRs
    │
    ├─ if B == 1             ── simt_engram_v2<D, 1>           LB(1024) 32 GPRs
    │
    └─ else (D < 512, B > 1) ── simt_engram_v2<D, B>           LB(1024) 32 GPRs

Path	Config Range	LAUNCH_BOUND	GPRs	kColWarps	Key Property
B=1	All D, B=1	1024	32	D/32	Full-column, each warp owns 32 cols
D≤256, B>1	D∈{128,256}, B>1	1024	32	D/(32×kCC)	ColChunks batched; kColWarps=1 at B=64 (zero barriers)
D≥512, B≥16	D∈{512,1024}, B≥16	512	64	D/256	Independent per-head loads, 8 concurrent table reads

6.2 Multi-Position Warp Mapping (B > 1)¶

The core structural optimization of this kernel is multi-position concurrent processing. Instead of processing positions serially like the baseline, all \(B\) positions are mapped to warps simultaneously:

kColWarpsBase = D / 32           (e.g., D=256 → 8)
kColChunks    = ColChunksImpl<kColWarpsBase, B>::value
                                  Compile-time: smallest CC such that
                                  (kColWarpsBase / CC) divides evenly AND
                                  (kColWarpsBase / CC) × B ≤ 32
kColWarps     = kColWarpsBase / kColChunks     (column partitions per position)
kTotalWarps   = kColWarps × B                  (total logical warps)
kLaunchWarps  = min(kTotalWarps, 32)           (physical warps launched)

At large batch (B=64 for D≤256), ColChunksImpl reaches kColChunks = kColWarpsBase → kColWarps = 1 → each warp owns the full column range for its position → zero cross-warp barriers. At smaller batches (B=4, B=16), kColWarps > 1 and cross-warp dot-product reduction via UB scratch + __sync_workitems() is required.

Position-to-warp assignment:

for (warpId = ty; warpId < kTotalWarps; warpId += kLaunchWarps):
    posId   = warpId / kColWarps       ← which position this warp processes
    colWarp = warpId % kColWarps       ← which column partition (0 when kColWarps=1)

When kTotalWarps > 32 (e.g., D=128, B=64: \(1 \times 64 = 64\) logical warps), the stride loop lets 32 physical warps process 64 positions in 2 iterations.

6.3 ColChunks Compile-Time Configuration Setting¶

The ColChunksImpl<CWB, B> metafunction finds the optimal column-chunking factor at compile time:

\(D\)	\(B\)	kColWarpsBase	kColChunks	kColWarps	kTotalWarps	Barriers
128	1	4	—	4	4	1
128	4	4	1	4	16	1
128	16	4	2	2	32	1
128	64	4	4	1	64	0
256	4	8	1	8	32	1
256	16	8	4	2	32	1
256	64	8	8	1	64	0
512	16	16	8	2	32	1
512	64	16	8	2	128	1 per stride-loop iteration

For D≤256 with B=64: kColChunks equals kColWarpsBase, collapsing all column warps into a single warp per position. Each thread processes kColChunks columns via an unrolled inner loop, accumulating dot_partial across all chunks. The redux_add then reduces the full D-wide dot product within a single warp — no UB scratch or barrier needed. At smaller batches (B=4, B=16), ColChunksImpl selects a smaller kColChunks to keep kTotalWarps ≤ 32, leaving kColWarps > 1 and requiring cross-warp reduction.

6.4 B=1 Kernel Structure¶

__simt_vf__ LAUNCH_BOUND(1024)
void simt_engram_v2<D, 1>(...)
{
    const uint32_t col = ty * 32 + tx;
    if (ty >= D/32) return;

    // Phase A: Load hidden, gate_weight (coalesced LDG → D-cache → GPR)
    float h_val = gmHidden[col];
    float g_val = gmGateW[col];

    // Phase B: Load indices (warp-uniform, single cacheline)
    int32_t idx[8];
    for (h = 0..7) idx[h] = gmIndices[h];

    // Phase C: Warp-partitioned dot product
    float warp_dot = redux_add(h_val * g_val);   // hardware 32-lane sum
    scrBuf[ty] = warp_dot;                       // partial sum → UB
    __sync_workitems();                          // ONLY cross-warp barrier

    // Phase D: Reconstruct full dot, apply gating
    float dot = 0.125;
    for (w = 0..kWarps-1) dot += scrBuf[w];
    float gate = 1 / (1 + expf(-dot));

    // Phase E: Streamed embedding accumulation
    float agg = gmTable[idx[0] * D + col];
    for (h = 1..7) agg += gmTable[idx[h] * D + col];

    gmOutput[col] = h_val + (gate / 8) * agg;
}

6.5 B>1 Kernel Structure (kColWarps=1 path, e.g., D≤256 B=64)¶

__simt_vf__ LAUNCH_BOUND(1024)
void simt_engram_v2<D, B>(...)    // D ≤ 256, B > 1
{
    for (warpId = ty; warpId < kColWarps * B; warpId += kLaunchWarps) {
        posId = warpId;           // kColWarps=1, so warpId == posId

        // Phase A: Multi-chunk dot product (zero barriers)
        float dot_partial = 0;
        float h_reg[kColChunks];  // cached for Phase C
        for (c = 0..kColChunks-1) {
            col = c * 32 + tx;
            h_reg[c] = gmHidden[posId * D + col];
            dot_partial += h_reg[c] * gmGateW[posId * D + col];
        }

        // Single-warp redux — NO barrier (kColWarps=1)
        float dot = redux_add(dot_partial) + 0.125;
        float gate = 1 / (1 + expf(-dot));

        // Phase B: Embedding lookup + fused output
        int32_t idx[8];
        for (h = 0..7) idx[h] = gmIndices[posId * 8 + h];

        for (c = 0..kColChunks-1) {
            col = c * 32 + tx;
            float agg = gmTable[idx[0] * D + col];
            for (h = 1..7) agg += gmTable[idx[h] * D + col];
            gmOutput[posId * D + col] = h_reg[c] + (gate / 8) * agg;
        }
    }    // stride loop for kTotalWarps > 32
}

6.6 LB(512) Variant (D≥512, B≥16)¶

At D≥512 with B≥16, this variant uses LAUNCH_BOUND(512) for 64 GPRs per thread. Key architectural differences:

1. Independent per-head loads: Instead of serial agg += gmTable[...] (which creates a dependency chain blocking the next load), all 8 table rows are loaded into independent temporaries t0..t7 then tree-summed as (t0+t1) + (t2+t3) + (t4+t5) + (t6+t7). This breaks the serial dependency chain and exposes 8 concurrent outstanding LDGs per column.

2. kColWarps=D/256 (2 at D=512, 4 at D=1024): Preserves active warps for latency hiding while keeping the D-cache working set manageable.

3. Indices loaded early: idx[H] is loaded before the dot-product phase to pipeline GM latency with subsequent computation.

---

7. Core SIMT Optimizations¶

7.1 Register-Forwarding Direct-GM Dataflow¶

All input data (table, hidden, gate_weight, indices) and output data bypass the UB entirely. Values flow from GM through the D-cache directly into per-thread GPRs:

┌──────┐                  ┌──────────┐
│  GM  │──── D-cache ────>│ Register │──> h_val × g_val (partial dot)
│      │     (LDG)        │   File   │──> Σ table rows (agg)
└──────┘                  │  (GPRs)  │──> fused output = h + σ(dot) × agg/8
                          └─────┬────┘
                                ↓ warp_dot only (B=1 or kColWarps>1)
                          ┌────────────┐
                          │ UB scratch │ ← kColWarps partial sums
                          └────────────┘
                     __sync_workitems()

UB is still used for cross-warp dot-product reduction when kColWarps > 1 (B=1 path: always; D≥512 B≥16 LB512: kColWarps=D/256). Each warp writes its warp_dot partial sum to scrBuf[ty], issues __sync_workitems(), then reads back kColWarps entries. For D≤256 B>1 (kColWarps = 1), redux_add completes the entire dot product within a single warp — zero UB usage, zero barriers.

The remaining SIMT UB traffic visible in ub.dump (SIMT_R, BHU_W, BHU_R) is automatic D-cache hardware plumbing — invisible to the application I/O and non-blocking.

UB Application-initiated I/O Operations (from ub.dump [UB_GRANT_STATS], B=1):

\(D\)	SIMD Baseline Total	SIMT Writer (STG only)	Reduction
128	129	8	94%
256	239	16	93%
512	459	32	93%

MTE2 busy cycles (B=64, RAND): - Baseline: 106,261 cycles - Fused: 5 cycles (hardware setup only) - Reduction: ~0%

7.2 Multi-Position Warp Mapping & Position Stride Loop¶

For \(B > 1\), warp ID maps directly to position ID via posId = warpId / kColWarps. When kTotalWarps > kLaunchWarps (e.g., D=128, B=64 → 64 logical warps, 32 physical), the stride loop for (warpId = ty; ...; warpId += kLaunchWarps) distributes work across iterations:

This amortizes the SIMT launch overhead (~1,100 cycles) across all \(B\) positions. At B=1 the overhead is 1,100 cy/position; at B=64 it amortizes to ~17 cy/position.

7.3 Zero-Barrier Design for D≤256 (ColChunks Remapping)¶

When ColChunks = kColWarpsBase (true for D≤256 at B=64), each warp covers the entire embedding dimension. The dot product redux_add(dot_partial) completes within a single warp — no __sync_workitems() barrier needed:

Approach	Barriers	Overhead
B=1 cross-warp dot (kWarps = D/32)	1	~200 cy latency + sync jitter
D≤256 B=64 ColChunks (kColWarps=1)	0	Zero barrier — parallel
D≥512 B≥16 LB512 (kColWarps=2)	1 per stride iteration	Required for cross-warp dot sum

7.4 Warp-Partitioned Cross-Warp Dot Product¶

When kColWarps > 1 (B=1 path or D≥512), the \(D\)-wide dot product spans multiple warps. Each warp computes only its 32-element partition:

Partial sums are shared via UB scratch + one __sync_workitems():

Without partitioning, every warp would redundantly load ALL \(D\) values of \(h\) and \(g\), generating massive D-cache FAKE_HITs:

\(D\)	kWarps	Naive Total Loads (h+g)	Partitioned Loads	Savings
128	4	32	8	75%
256	8	128	16	87.5%
512	16	512	32	93.75%

Naive: each warp loads all \(D/32\) cachelines for both \(h\) and \(g\) = \(\text{kWarps} \times 2 \times D/32\). Partitioned: each warp loads only its 32-element slice = \(\text{kWarps} \times 2\).

7.5 SIMT In-Register Caching¶

In the B>1 path, h_reg[kColChunks] is loaded during the dot-product phase and kept live in registers for the output phase. This eliminates a second set of D-cache reads for hidden:

// Phase A: load + dot
float h_reg[kColChunks];
for (c = 0..kColChunks-1) {
    h_reg[c] = gmHidden[posId * D + col];     // First load → D-cache MISS
    dot_partial += h_reg[c] * gmGateW[...];
}

// Phase C: reuse from register (zero D-cache cost)
gmOutput[...] = h_reg[c] + (gate * kInvH) * agg;

At D=256: saves 8 LDG instructions per position (\(8 \times 128\text{B} = 1{,}024\text{B}\) per position).

7.6 Streamed Embedding Accumulation¶

Instead of materializing all \(H = 8\) gathered rows in a register array (consuming 8 GPRs per column), the kernel streams them into a single accumulator:

At LAUNCH_BOUND(1024) with 32 GPRs, the kernel uses ~25 base GPRs. An emb[8] array pushes to 33 and triggers register spills, increasing SIMT_busy by 30%+ at D=256.

The LB(512) variant uses the opposite strategy — 8 independent loads t0..t7 — because 64 GPRs provide ample headroom and the independent loads break the serial dependency chain for better instruction-level parallelism.

7.7 Independent Head-Load Pattern (512 Shape)¶

In the LB(512) variant, all 8 table row loads per column are issued independently:

float t0 = gmTable[idx[0] * D + col];
float t1 = gmTable[idx[1] * D + col];  // no dependency on t0
...
float t7 = gmTable[idx[7] * D + col];  // no dependency on t0..t6
float agg = (t0 + t1) + (t2 + t3) + (t4 + t5) + (t6 + t7);

With the serial agg += ... approach, each load depends on the previous addition completing — limiting outstanding to 1 per column. With independent loads, the D-cache can have \(\leq 8\) concurrent requests per column per warp, significantly improving memory-level parallelism.

7.8 Bias Merging¶

The gate bias \(b = 0.125\) is used as the dot-product accumulator's initial value:

dot = kGateBiasF;                           // 0.125 as initial value
for (w = 0..kColWarps-1) dot += scrBuf[w];   // kColWarps FADDs total
// vs naive: dot = 0; for (...) dot += ...; dot += kGateBiasF;  // kColWarps+1

Saves 1 FADD per thread.

---

8. Engram Kernel Performance Analysis — Fused SIMT vs SIMD (CA Model)¶

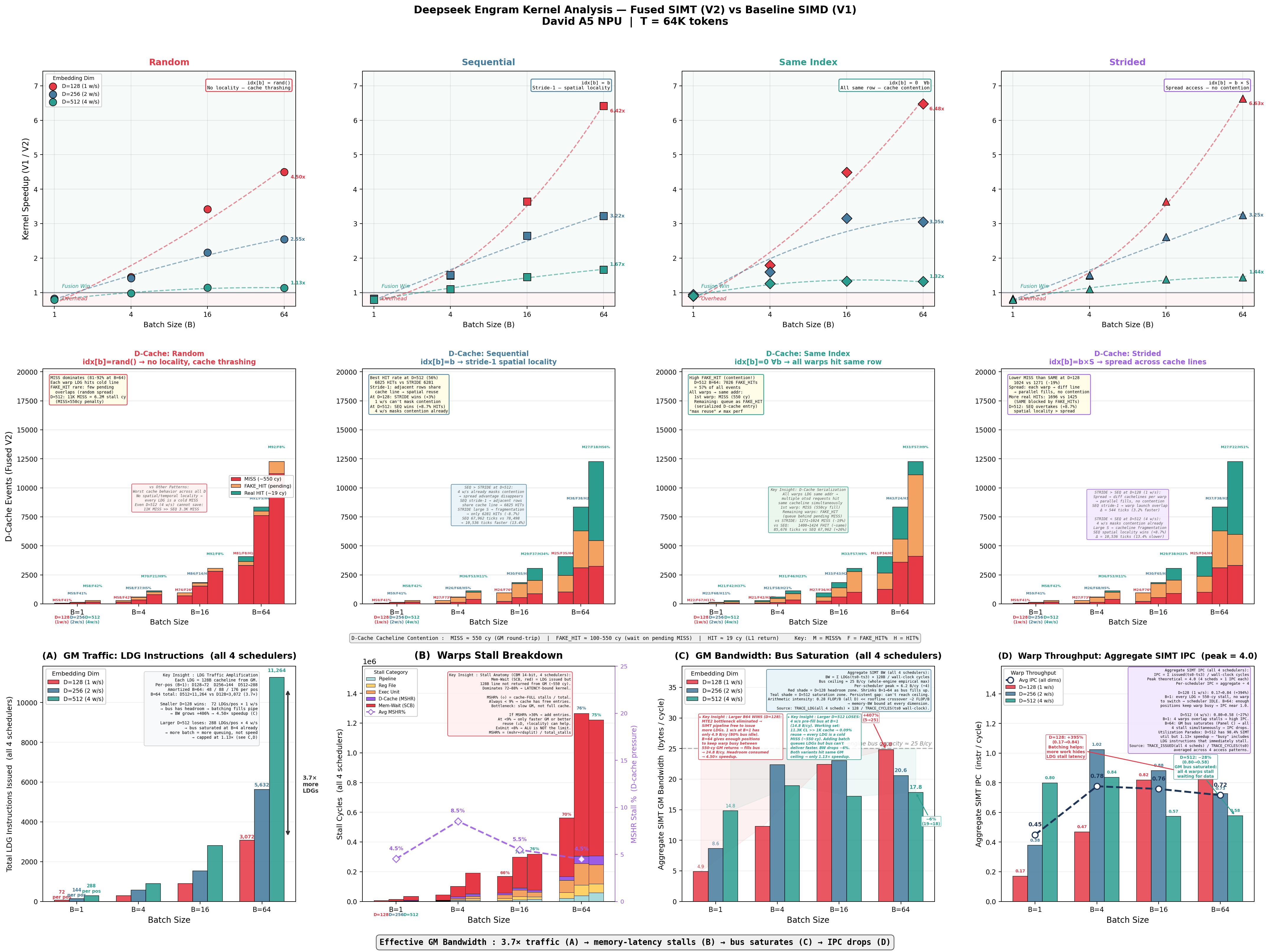

The figure presents 12 subplots organized as: - Row 1 (4 subplots): Kernel speedup per access pattern - Row 2 (4 subplots): D-cache event breakdown per access pattern - Row 3 (4 subplots): Root cause analysis — GM Traffic (A), Stall Breakdown (B), GM Bandwidth (C), Warp Throughput IPC (D)

All numerical values are extracted from CA-Model cycle-accurate simulator trace logs.

Variable Extraction Reference¶

Variable	Source File	Extraction
TICKS	core0_summary_log	busy_ticks field (one per kernel run)
TRACE_ISSUED	ts{0-3}_log.dump	grep -c ') issue' per scheduler, sum all 4
TRACE_LDG	ts{0-3}_log.dump	grep -c 'SIMT_LDG.*issue' per scheduler, sum all 4
TRACE_CYCLES	ts0_log.dump	Last − first CheckBitMask timestamp (shared clock across all 4 schedulers)
DC events	dc.dump	grep -c "tagRst:MISS\|FAKE_HIT\|HIT"
CBM_STALLS	ts{0-3}_log.dump	Parse 14-bit CheckBitMask per cycle, count each bit category, sum all 4 schedulers

---

8.1 Kernel Speedup¶

RAND Pattern Speedup¶

\(D\)	B=1	B=4	B=16	B=64
128	0.80×	1.45×	3.42×	4.50×
256	0.83×	1.42×	2.16×	2.55×
512	0.79×	0.98×	1.14×	1.13×

B=1 is always slower (0.79–0.83×): SIMT launch overhead (~1,100 cycles for warp configuration + barrier + D-cache cold startup) exceeds the baseline's serial DMA cost at single-position scale. Crossover at B ≈ 3–4 for D=128.

D=128 achieves 4.50× at B=64: Per-position cost drops from 4,576 cy/pos (B=1) to 380 cy/pos (B=64) — 12.0× amortization. The D-cache working set at D=128 fits well: 4,096 cacheline requests across 64 positions yield 10.5% HIT rate from cross-position reuse.

D=512 plateaus at 1.13×: Working set of 12,288 cacheline requests far exceeds the 1,024-line D-cache capacity. Near-zero HIT rate (0.09%) means both baseline and fused variants are equally GM-bandwidth-bound.

---

8.2 D-Cache Event Breakdown¶

Stacked bars per pattern showing MISS, FAKE_HIT, and HIT counts for the fused kernel.

Event	Meaning	Latency
MISS	Cacheline not present → triggers GM fetch	~550 cycles
FAKE_HIT	Pending MISS in-flight → piggybacks, no new GM request	~100–550 cycles
HIT	Cacheline resident — valid data	~19 cycles

D-Cache Events at B=64 (from dc.dump)¶

Pattern	\(D\)	MISS	FAKE_HIT	HIT	Total	MISS %
RAND	128	3,320	347	429	4,096	81%
RAND	256	7,632	384	336	8,352	91%
RAND	512	11,248	1,029	11	12,288	92%
SEQ	512	3,259	2,204	6,825	12,288	27%
SAME	512	4,113	7,026	1,149	12,288	33%
STRIDE	512	3,330	2,677	6,281	12,288	27%

RAND: MISS dominates at 81–92%. Random indices produce no spatial or temporal locality.

SEQ: Best HIT rate — 55.5% at D=512, B=64. Sequential indices access consecutive rows; warp scheduling depth creates temporal overlap where earlier loads complete before later warps access nearby cachelines.

SAME: Highest FAKE_HIT — 57.2% at D=512, B=64. All 8 heads access the identical row, so the first warp's MISS triggers 7 subsequent FAKE_HITs while the cacheline fill is still in-flight.

Cross-pattern performance impact: SEQ fused ticks = 67,962 vs STRIDE = 78,498 at D=512, B=64 — a 13.4% advantage from better D-cache locality.

---

8.3 GM Traffic (LDG Instructions)¶

Total SIMT_LDG instructions issued across all 4 schedulers. LDG count is pattern-independent (same program path regardless of index values).

\(B\)	D=128	D=256	D=512
1	72	144	288
4	288	576	896
16	896	1,536	2,816
64	3,072	5,632	11,264

Per-warp LDG count: 18 LDGs/warp at B=1 — each warp loads 10 values via LDG (1 hidden + 1 gate_weight + 8 table row elements), plus 8 additional LDGs for index loads (gmIndices[h] for h=0..7, warp-uniform but each generates a separate LDG instruction). UB scratch reads (scrBuf[w]) are NOT LDGs — they are direct UB reads. Total: \(18 \times \text{kWarps}\) (72 = 18×4, 144 = 18×8, 288 = 18×16).

D=512 issues 3.7× more LDGs than D=128 at every batch: \(11{,}264 / 3{,}072 = 3.67\times\). This traffic ratio is the root cause of D=512's performance gap.

Per-position amortization at B=64: D=128: \(3{,}072/64 = 48\) LDGs/pos (vs 72 at B=1 → 33% saved); D=512: \(11{,}264/64 = 176\) (vs 288 → 39% saved). The savings come from hidden/gate_weight D-cache reuse across positions.

---

Stall Breakdown (CheckBitMask)¶

The 14-bit CheckBitMask field in each scheduler's trace indicates stall conditions per cycle. Each bit is counted across all cycles of all 4 schedulers:

Bit	Stall	Description
13	RdSplit	Read-split buffer full
12	MSHR	D-cache MSHR entry exhausted — cannot accept new MISS
9	ExUnit	Execution unit resource conflict
8–5	RegFile	Register file read port conflict
3	Scoreboard	Data dependency — LDG issued but data not returned (~550 cy wait)
2–0	Pipeline	Instruction pipeline / setup stall

Values below are averaged across 4 access patterns.

Scoreboard dominance: Scoreboard (memory-wait) constitutes 72–88% of all stall cycles across every configuration. This proves the fused kernel is fundamentally memory-latency-bound.

MSHR stalls are only 1–5% at B=64, confirming the D-cache has free MSHR slots. The bottleneck is not cache capacity but GM round-trip latency.

---

8.5 GM Bandwidth¶

Aggregate SIMT GM bandwidth measures how fast the engine delivers data through the D-cache return path:

Config	LDGs	Bytes	Mean Cycles	BW (B/cy)
D=128, B=1	72	9,216	1,884	4.89
D=128, B=4	288	36,864	3,005	12.27
D=128, B=16	896	114,688	5,119	22.40
D=128, B=64	3,072	393,216	15,844	24.82
D=256, B=1	144	18,432	2,131	8.65
D=256, B=4	576	73,728	3,299	22.35
D=256, B=16	1,536	196,608	8,529	23.05
D=256, B=64	5,632	720,896	35,022	20.58
D=512, B=1	288	36,864	2,487	14.82
D=512, B=4	896	114,688	6,063	18.92
D=512, B=16	2,816	360,448	20,971	17.19
D=512, B=64	11,264	1,441,792	80,967	17.81

The empirical peak is 24.82 B/cy at D=128, B=64 — rounded to 25. This is NOT a hardware spec; it is the maximum throughput the GM return path (HBM → NoC → D-cache fill port) sustains in the simulator model. Per-warp sustained BW is only \(128 / 550 = 0.23\) B/cy; the aggregate 25 B/cy is achieved because multiple warps issue concurrent LDGs whose 550-cycle stalls overlap:

D=128: BW rises from 4.89 to 24.82 (+407%) as batch grows. At B=1 with 1 warp/scheduler, insufficient memory-level parallelism. At B=64, enough LDGs in-flight to saturate the bus.

D=512: BW peaks at B=4 (18.92) and barely changes (17–18). The 11,264 × 128B = 1.4 MB working set far exceeds D-cache capacity. Constant thrashing holds BW below the ceiling.

---

8.6 Warp Throughput (IPC)¶

Instructions Per Cycle aggregated across all 4 schedulers:

Config	TRACE_ISSUED	Mean Cycles	Agg IPC	Per-Sched IPC
D=128, B=1	316	1,884	0.170	0.043
D=128, B=4	1,376	3,005	0.469	0.117
D=128, B=16	4,096	5,119	0.820	0.205
D=128, B=64	12,864	15,844	0.843	0.211
D=256, B=1	792	2,131	0.378	0.094
D=256, B=4	3,360	3,299	1.024	0.256
D=256, B=16	7,328	8,529	0.882	0.221
D=256, B=64	25,216	35,022	0.728	0.182
D=512, B=1	1,968	2,487	0.800	0.200
D=512, B=4	4,992	6,063	0.837	0.209
D=512, B=16	11,904	20,971	0.573	0.143
D=512, B=64	45,888	80,967	0.579	0.145

Peak theoretical IPC = 4.0: 4 schedulers × 1.0 max each.

D=128 IPC rises with batch (0.17 → 0.84, +395%): At B=1, 1 warp/scheduler stalls for 550 cycles per LDG with no other warp to switch to. At B=64, the stride loop gives the scheduler 64 positions worth of work — during 550-cycle stalls, it can issue instructions for other positions.

D=512 IPC falls from B=1 to B=64 (0.80 → 0.58, −28%): At B=1, 4 warps/scheduler overlap stalls effectively. At B=64, massive LDG pressure saturates the GM bus (Panel C) — ALL warps stall simultaneously waiting for data, pushing IPC down.

---

8.7 Key Take-Away¶

1. D=512 issues 3.7× more LDGs than D=128 at B=64 (11,264 vs 3,072)
2. Those LDGs cause 72–88% scoreboard stalls — warps wait 550 cycles per GM round-trip
3. The GM bus saturates at ~25 B/cy — physical return path cannot deliver data faster
4. All warps stall together → IPC drops from 0.80 to 0.58 at D=512

---

8.8 SIMT Architectural Exploration¶

Summary Table¶

#	Phenomenon	Definition	Key Observation in Engram
1	D-Cache Locality	Benefits from accessing nearby (spatial) or recently-used (temporal) addresses. HIT ~19 cy vs MISS ~550 cy.	SEQ at D=512 B=64: 55.5% HIT. RAND: 0.09%. SEQ ticks 26% lower than RAND.
2	D-Cache Thrashing	Working set exceeds cache capacity → continuous eviction of needed lines.	D=128: 40 CL/pos (3.9% of cache) → 4.50×. D=512: 160 CL/pos (15.6%) → 1.13×. Speedup cliff.
3	D-Cache Reuse	Cacheline loaded by one consumer remains resident for later consumers. Warp scheduling order determines survival.	SAME: 8 heads share a row → first MISS fills, 7 others get FAKE_HIT/HIT. h_reg[] keeps hidden in GPRs for output reuse (§7.5).
4	D-Cache Pressure	Ratio of unique CL touched to cache size. High pressure → eviction storms.	D=128 B=64: moderate pressure → 24.82 B/cy. D=512 B=64: 160 CL/pos eviction pressure → 17.81 B/cy despite 3.7× more LDGs.
5	D-Cache Contention	Multiple warps compete for the same cache, each MISS evicting another warp's data.	D=512: IPC falls −28% with batch (destructive eviction). D=128: IPC rises +395% (no contention).
6	D-Cache Serialization	Multiple requestors access a cacheline while a MISS is in-flight → queue behind the fill (FAKE_HIT, ~100–550 cy).	SAME at D=512 B=64: 57.2% FAKE_HITs (7,026/12,288). Saves GM BW but serialization penalty offsets reuse benefit → SAME ≈ SEQ.
7	Memory Latency	Time from LDG issue to data return. HIT ~19 cy, cold MISS ~550 cy (cache → NoC → HBM → return).	Scoreboard stalls = 72–88% of all stall cycles across every config. Kernel is memory-latency-bound.
8	Warp Effective BW	Single warp: 0.23 B/cy. Multiple warps overlap stalls → aggregate BW grows until bus ceiling.	D=128: 4.89 → 24.82 B/cy (+5×) with batch. D=512: peaks at 18.92 and flatlines (thrashing). Bus ceiling ~25 B/cy.
9	GM Effective IPC	Instructions/cycle across 4 schedulers (peak 4.0). Rising IPC = latency hiding works. Falling IPC = bus saturated.	D=128: +395% IPC B=1→B=64 (latency-limited → add warps helps). D=512: −28% (bandwidth-limited → more warps hurt).

Observed Pattern¶

8.8.1 D-Cache Locality

| Metric | RAND (D=512 B=64) | SEQ (D=512 B=64) | Delta | |:-------|:--:|:--:|:--:| | HIT rate | 0.09% | 55.5% | +55.4pp | | Kernel ticks | higher | 26% lower | SEQ wins | Sequential indices access consecutive table rows that share cachelines → spatial locality. Random indices scatter across the 64K-row table → no spatial relationship.

8.8.2 D-Cache Thrashing

| $D$ | CL/position | % of D-cache (1024 lines) | CL at B=64 | Speedup | |:---:|:-----------:|:-------------------------:|:----------:|:-------:| | 128 | 40 | 3.9% | 2,560 | **4.50×** | | 256 | 80 | 7.8% | 5,120 | **2.55×** | | 512 | 160 | 15.6% | 10,240 | **1.13×** | Per-position CL demand = $(H + 2) \times D/32$. At D=512 B=64, total demand is 10× cache capacity → near-zero HITs → speedup collapses.

8.8.3 D-Cache Reuse

| Reuse Type | Mechanism | Benefit | |:-----------|:----------|:--------| | Cross-head (SAME) | All 8 heads index same row → first MISS fills CL, 7 others get FAKE_HIT/HIT | Saves 7 GM requests per position | | Cross-position (SEQ) | Adjacent positions access nearby rows → warm CL from earlier warps | Temporal overlap from warp scheduling depth | | Intra-position (GPR) | `h_reg[kColChunks]` loaded in dot-product phase, reused in output phase (§7.5) | Zero D-cache cost for hidden re-read |

8.8.4 D-Cache Pressure

| Config | CL/position | Effective BW | Bottleneck | |:-------|:-----------:|:------------:|:-----------| | D=128 B=64 | 40 | 24.82 B/cy | GM bus ceiling (~25 B/cy) | | D=512 B=64 | 160 | 17.81 B/cy | Cache eviction pressure | D=128: moderate pressure → cache absorbs traffic → BW reaches bus ceiling. D=512: 160 CL/pos sustained eviction prevents cache from retaining data → BW capped below bus ceiling.

8.8.5 D-Cache Contention

| Config | Warps/scheduler | IPC trend with batch | Explanation | |:-------|:---------------:|:--------------------:|:------------| | D=128 | 1 → 8 | +395% (rises) | Working set fits → more warps = more latency hiding | | D=512 | 4 → 4 (×8 stride) | −28% (falls) | Working set overflows → stride loop touches 8× more table rows per warp | At D=512 B=64: 128 logical warps mapped to 16 physical (4/scheduler). The stride loop makes each warp process 8 positions, each touching 160 unique CL → massive cache pollution per warp.

8.8.6 D-Cache Serialization (FAKE_HIT)

| Pattern | D=512 B=64 Events | MISS | FAKE_HIT | HIT | FAKE_HIT % | |:--------|:------------------:|:----:|:--------:|:---:|:----------:| | SAME | 12,288 | 4,113 | **7,026** | 1,149 | **57.2%** | | RAND | 12,288 | 11,248 | 1,029 | 11 | 8.4% | SAME: all 8 heads → same row → first warp triggers MISS → 7 others queue behind (FAKE_HIT). Saves GM bandwidth but serialization penalty (~100–550 cy wait) offsets the reuse benefit → SAME ≈ SEQ performance.

8.8.7 Memory Latency

| Stall Category | Share of Total Stalls | Implication | |:---------------|:---------------------:|:------------| | Scoreboard (LDG wait) | **72–88%** | Warps wait ~550 cy per GM round-trip | | MSHR | 1–5% | Cache slots available — not the bottleneck | | Other (ExUnit, RegFile, Pipeline) | 7–27% | Minor contributors | The kernel is not compute-bound, not cache-capacity-bound, not MSHR-limited — it is **memory-latency-bound**. Even at 98.4% SIMT utilization, ~75% of execution time is spent waiting for data.

8.8.8 Warp Effective BW vs Warps-per-Scheduler

| Config | Warps/Sched | BW (B/cy) | vs B=1 | |:-------|:-----------:|:---------:|:------:| | D=128 B=1 | 1 | 4.89 | — | | D=128 B=64 | 8 | 24.82 | **+5.1×** | | D=512 B=1 | 4 | 14.82 | — | | D=512 B=64 | 4 | 17.81 | +1.2× | D=128: BW scales 5× with warps (latency hiding). D=512: BW flatlines (thrashing prevents cache absorption). The ~25 B/cy ceiling is the physical throughput of GM return path (HBM → NoC → D-cache fill port).

8.8.9 GM Effective IPC

| Config | Agg IPC | Trend B=1→B=64 | Diagnosis | |:-------|:-------:|:---------------:|:----------| | D=128 | 0.17 → 0.84 | **+395%** | Latency-limited: more warps help | | D=512 | 0.80 → 0.58 | **−28%** | Bandwidth-limited: more warps hurt | Rising IPC = scheduler finds ready warps during 550-cy stalls. Falling IPC = all warps stall simultaneously waiting for data (bus saturated).

---

9. Key Insights¶

1. MTE2 elimination is the primary speedup source: Baseline spends most of kernel ticks in MTE2 DMA. SIMT reduces MTE2 to 5 cycles (hardware setup), converting the bottleneck from DMA-serialization to D-cache-backed register execution.

2. Batch amortizes SIMT overhead: B=1 is 0.8× (slower, launch overhead dominates). B=64 is 4.5× (12× per-position amortization). Crossover at B ≈ 3–4.

3. D-cache working set determines speedup ceiling: D=128 working set (4,096 CL at B=64) yields 10.5% HIT rate → 4.50×. D=512 working set (12,288 CL >> 1,024 capacity) yields 0.09% HITs → 1.13×.

4. Memory-latency (scoreboard) is the main bottleneck: 72–88% of all stall cycles across every configuration. The kernel is memory-latency-bound, not compute-bound or cache-capacity-bound.

5. MSHR is NOT exhausted: Only 1–5% MSHR stalls at B=64. The 64-entry MSHR has free capacity. The bottleneck is GM round-trip latency, not cache slot availability.

6. The GM bus saturates at ~25 B/cy: Empirical ceiling (24.82 B/cy at D=128, B=64). D=512 hits this ceiling at B=4 and cannot improve further.

7. IPC divergence reveals the scaling wall: D=128 IPC rises +395% with batch (more work helps). D=512 IPC falls −28% (more work hurts — bus already saturated).

8. Access pattern has modest impact: RAND vs SAME shows only ~11% difference at D=256, B=4. Warp scheduling hides most pattern effects.

9. The Utilization Paradox: D=512 achieves 98.4% SIMT utilization but only 1.13× speedup. The SIMT engine is "busy" whenever any warp issues an instruction — including SIMT_LDG that then stalls 550 cycles. The scheduler always finds a warp to issue (high utilization), but the issued instruction is often a memory access that contributes only latency, not useful compute.

---

10. Performance Tuning Knob¶

Knob	Effect	Recommendation
Batch size \(B\)	Amortizes SIMT launch overhead; enables D-cache reuse	\(B \geq 4\) for speedup > 1.0×; \(B \geq 16\) for significant gains
Embedding dim \(D\)	Controls working set vs D-cache capacity	\(D \leq 256\) gives best SIMT speedup (working set fits in D-cache)
LAUNCH_BOUND	Trades GPR count for warp parallelism	LB(1024) for D≤256 (max warps, ColChunks zero-barrier); LB(512) for D≥512 B≥16 (64 GPRs for independent head loads)
Access pattern	Affects D-cache HIT rate	SEQ gives best locality; RAND worst. Difference is modest

When to Use SIMT Fusion vs Baseline SIMD¶

Scenario	Recommendation	Reason
\(B = 1\)	SIMD baseline	SIMT launch overhead exceeds DMA cost
\(B \geq 4\), \(D \leq 256\)	SIMT fused	1.4–4.5× speedup from MTE2 elimination + D-cache reuse
\(B \geq 4\), \(D = 512\)	SIMT fused (marginal)	1.0–1.1× speedup; GM bandwidth is bottleneck for both (but SIMT has clear benefit of not using UB & SIMT ld/st coupled with coompute - which will demonstrate significant performance gain when SIMT used for hybrid configuration (DMA-SIMT or SIMD-SIMT - decoupled ld/st with compute & UB staging))

---

11. Build and Run¶

Two Build Modes¶

This test suite supports two modes, controlled by the PERF_ANALYSIS compile definition:

Mode	Compile Flag	Kernel (D,B) Combos	Test Configs	Total Tests
Default ST	(none)	4 release configs	4 × 2 variants	8
Performance Exploration	-DPERF_ANALYSIS	16 (4D × 4B)	192 × 2 variants	384

Default ST Mode¶

Builds and runs 4 representative release configs with RAND-only indices:

Test	Dim	Batch	Table	Variants
ENGRAMSIMTTest.*_E128_B1_T64K	128	1	64K	baseline + fused
ENGRAMSIMTTest.*_E256_B4_T64K	256	4	64K	baseline + fused
ENGRAMSIMTTest.*_E512_B1_T64K	512	1	64K	baseline + fused
ENGRAMSIMTTest.*_E1024_B1_T64K	1024	1	64K	baseline + fused

No special compile flags needed — this is the default build.

Performance Exploration Mode (PERF_ANALYSIS)¶

To run the full architectural exploration (4D × 4B × 4 patterns × 3 table sizes), pass -p to run.sh:

bash run.sh -r sim -v Ascend910_9599 -p

This activates #ifdef PERF_ANALYSIS guards in three files: - engram-simt_kernel.cpp: Instantiates all 16 ENGRAM_INST(D, B) combos — D ∈ {128, 256, 512, 1024} × B ∈ {1, 4, 16, 64} - main.cpp: CT_P → CT_D → CT_ALL macro chain generates tests across 4 patterns (RAND, SEQ, SAME, STRIDE) × 3 table sizes (64K, 256K, 1M) × 4 batches × 4 dims - gen_data.py: Run with PERF_ANALYSIS=1 python3 gen_data.py to generate golden data for all 384 test directories with pattern-specific index generation

Test naming: ENGRAMSIMTTest.{baseline|fused}_E{D}_B{B}_T{size}_{pattern}

Example: ENGRAMSIMTTest.fused_E512_B16_T64K_STRIDE

Prerequisites¶

export ASCEND_HOME_PATH=/usr/local/Ascend/cann
source /usr/local/Ascend/cann/set_env.sh

Run via run.sh¶

cd kernels/manual/a5/engram_simt

# Default mode — all 8 tests (sim)
bash run.sh -r sim -v Ascend910_9599

# Single test
bash run.sh -r sim -v Ascend910_9599 -c "ENGRAMSIMTTest.baseline_E128_B1_T64K"

# Perf-analysis mode — all 384 tests
bash run.sh -r sim -v Ascend910_9599 -p

# Perf-analysis mode — single exploration test
bash run.sh -r sim -v Ascend910_9599 -p -c "ENGRAMSIMTTest.fused_E512_B16_T64K_STRIDE"

---

12. References¶

1. DeepSeek-V3 Technical Paper — "Conditional Memory via Scalable Lookup" (arXiv 2601.07372)
